LEATHER MASTER GC-2603 Small Cylinder Arm Walking Foot Sewing Machine for Leather
Applications

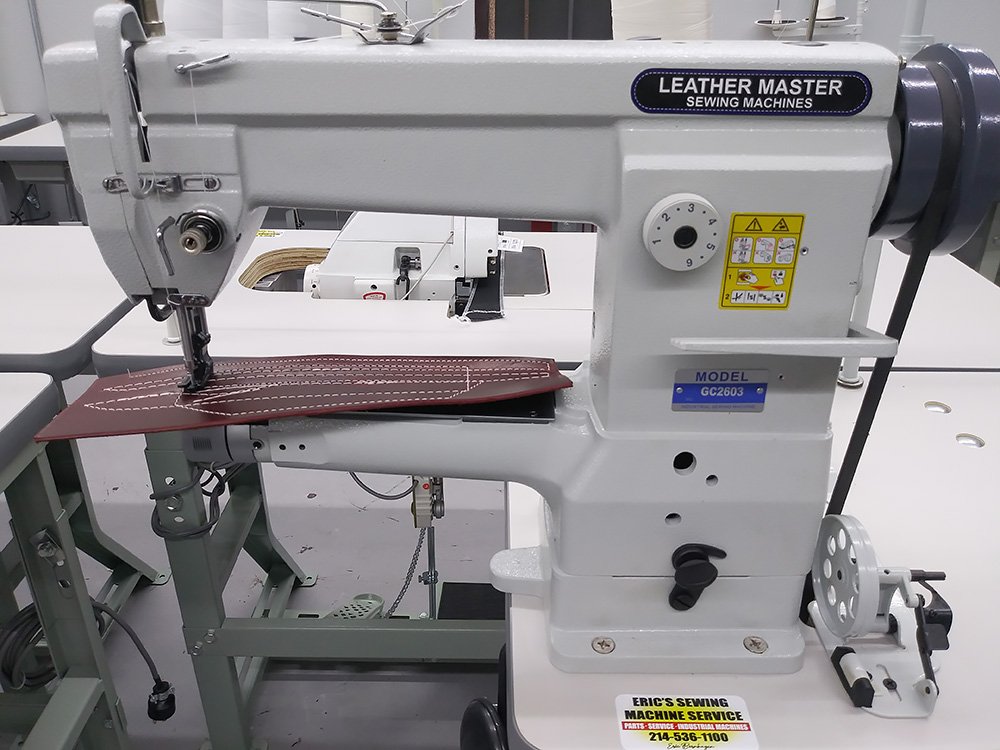

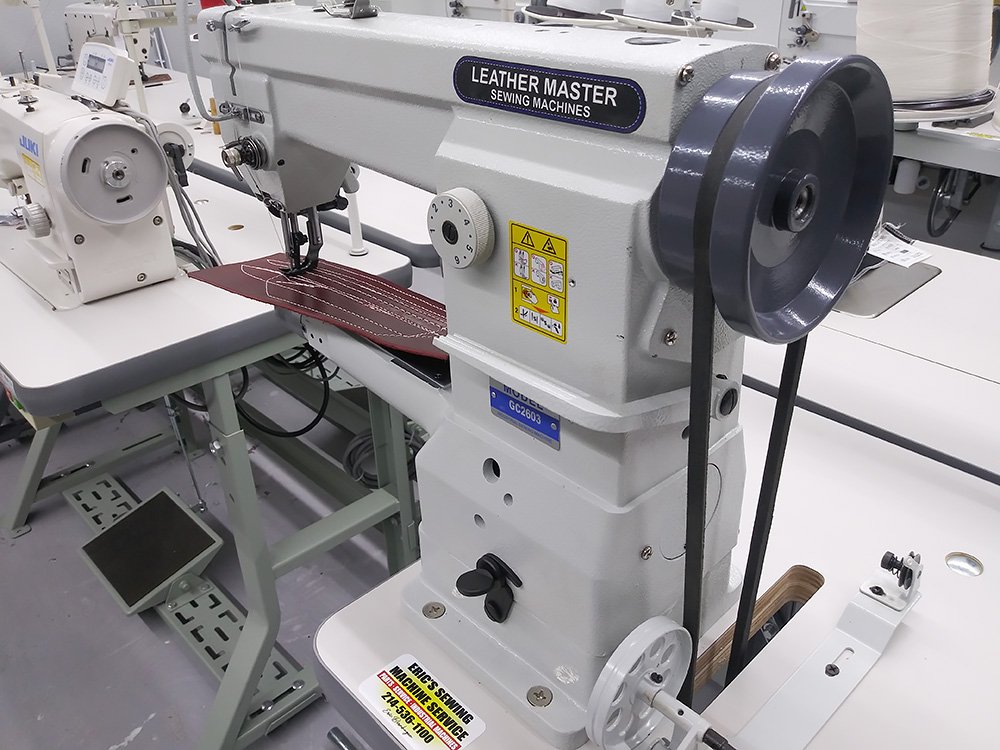

The LEATHER MASTER GC-2603 is a small cylinder arm, single needle lockstitch machine with compound feed, walking foot and enlarged 1.4x hook & base (M Size Bobbin).

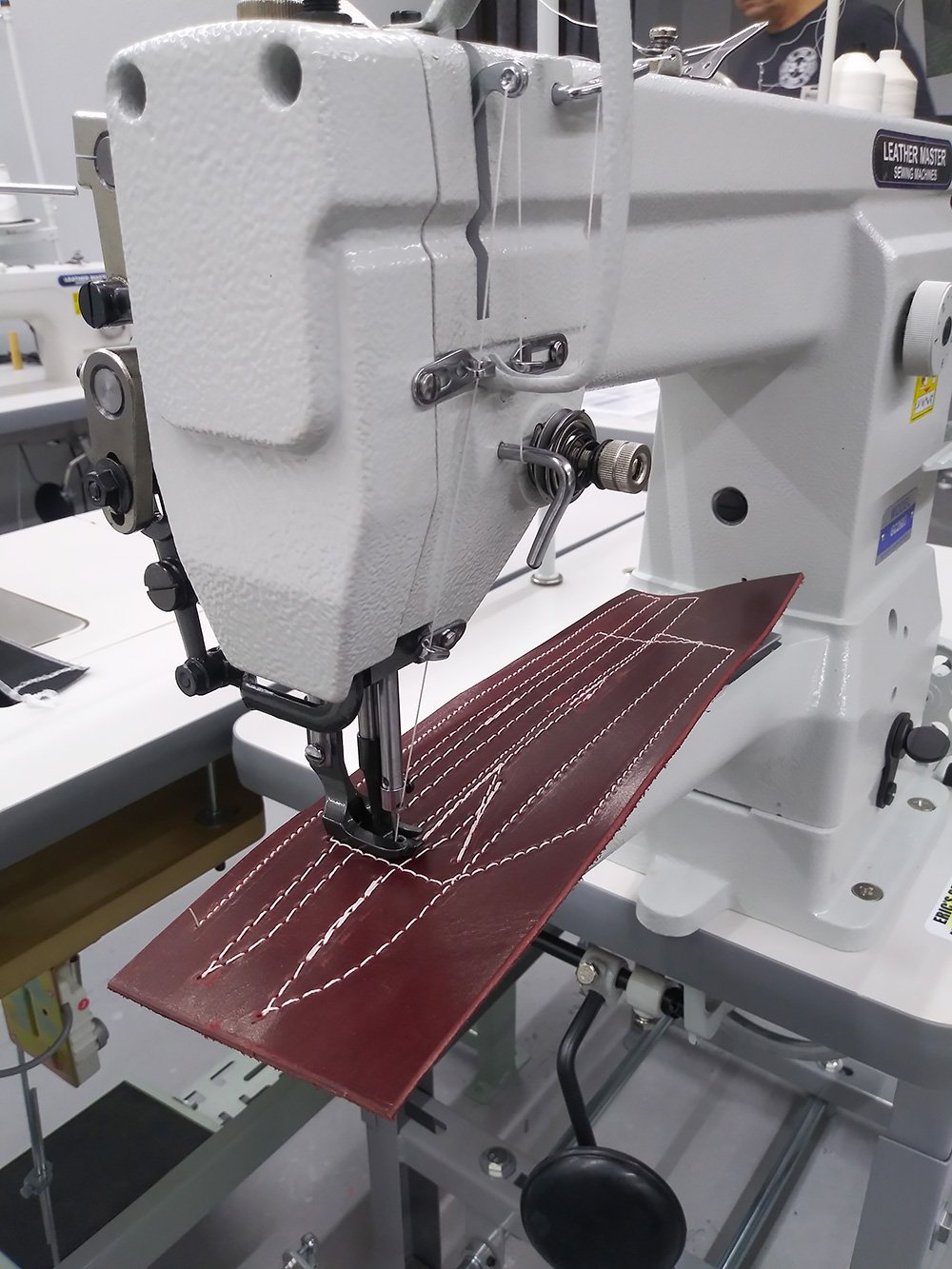

It features a heavy duty triple feeding action by way of bottom feed, needle bar feed and walking foot top feed, which combine together to produce high quality seams.

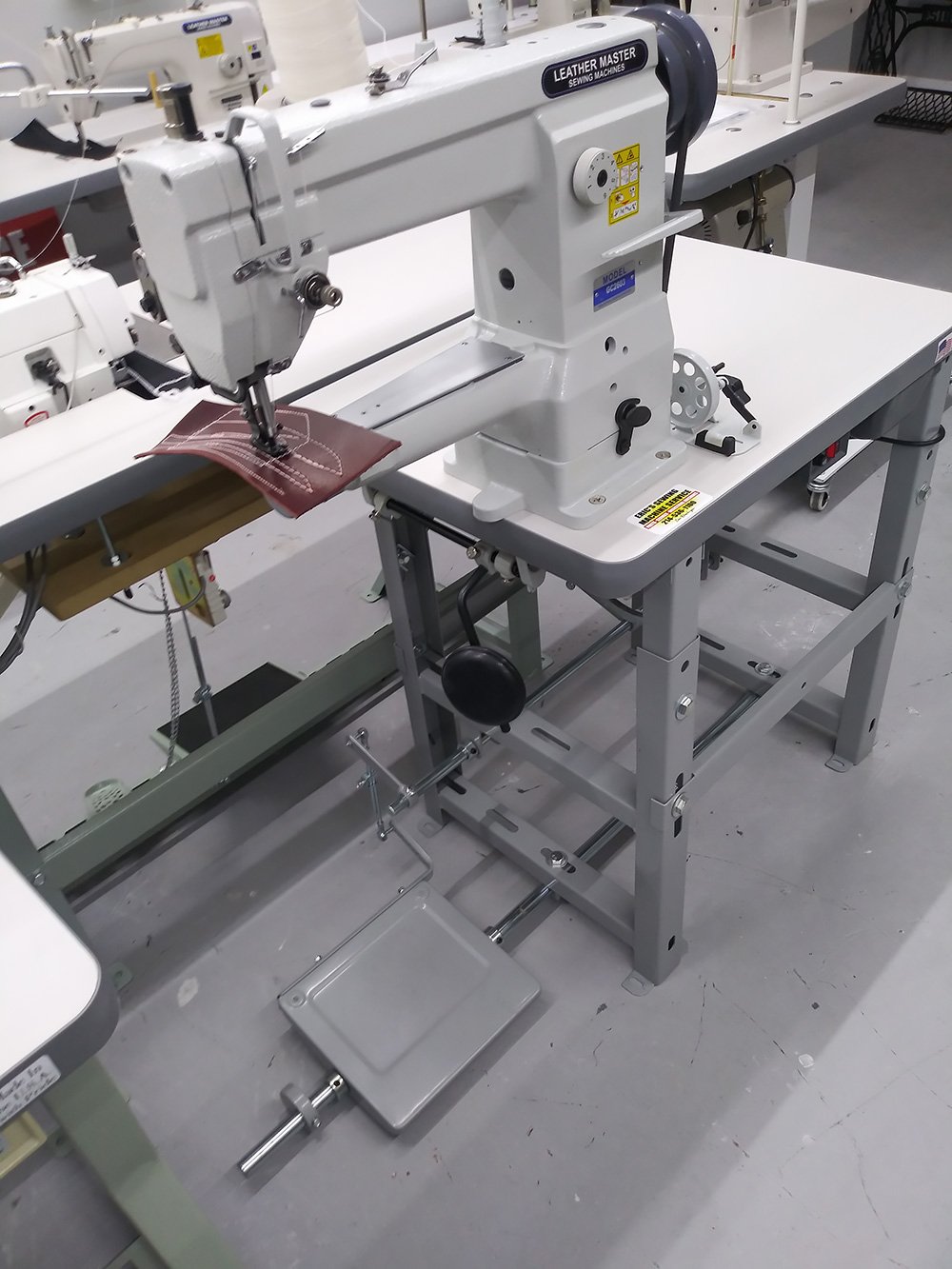

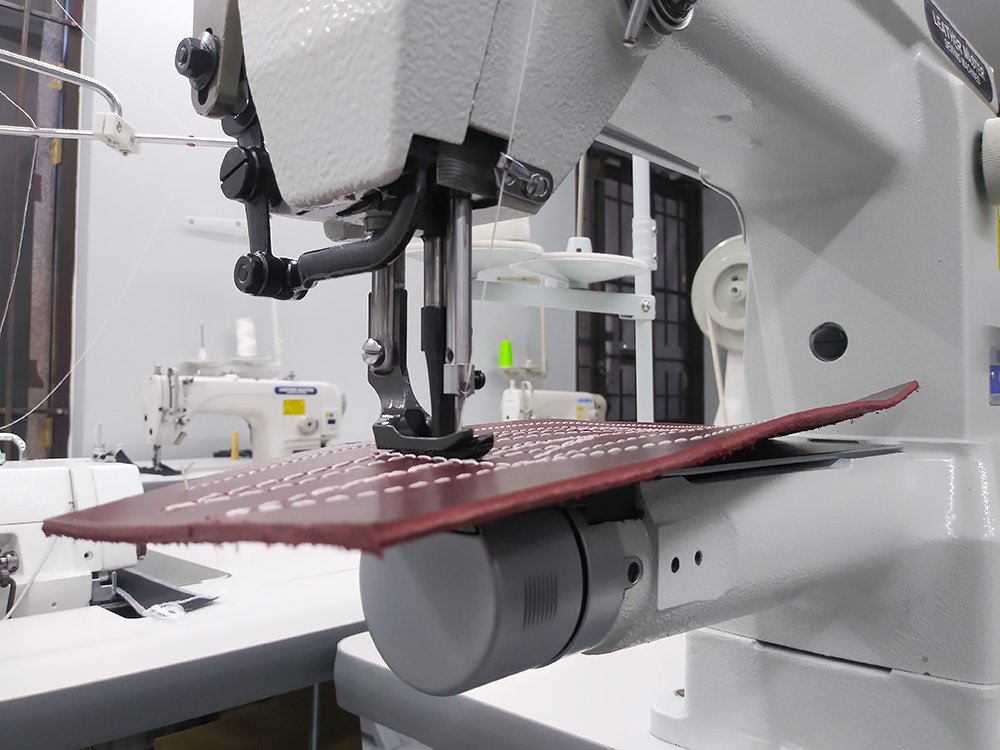

The versatile narrow cylinder free-arm design guarantees improved material handling on three dimensional items like bags, gloves, shoes, straps, filters and other such items which cannot be sewn on a standard flat bed machine.

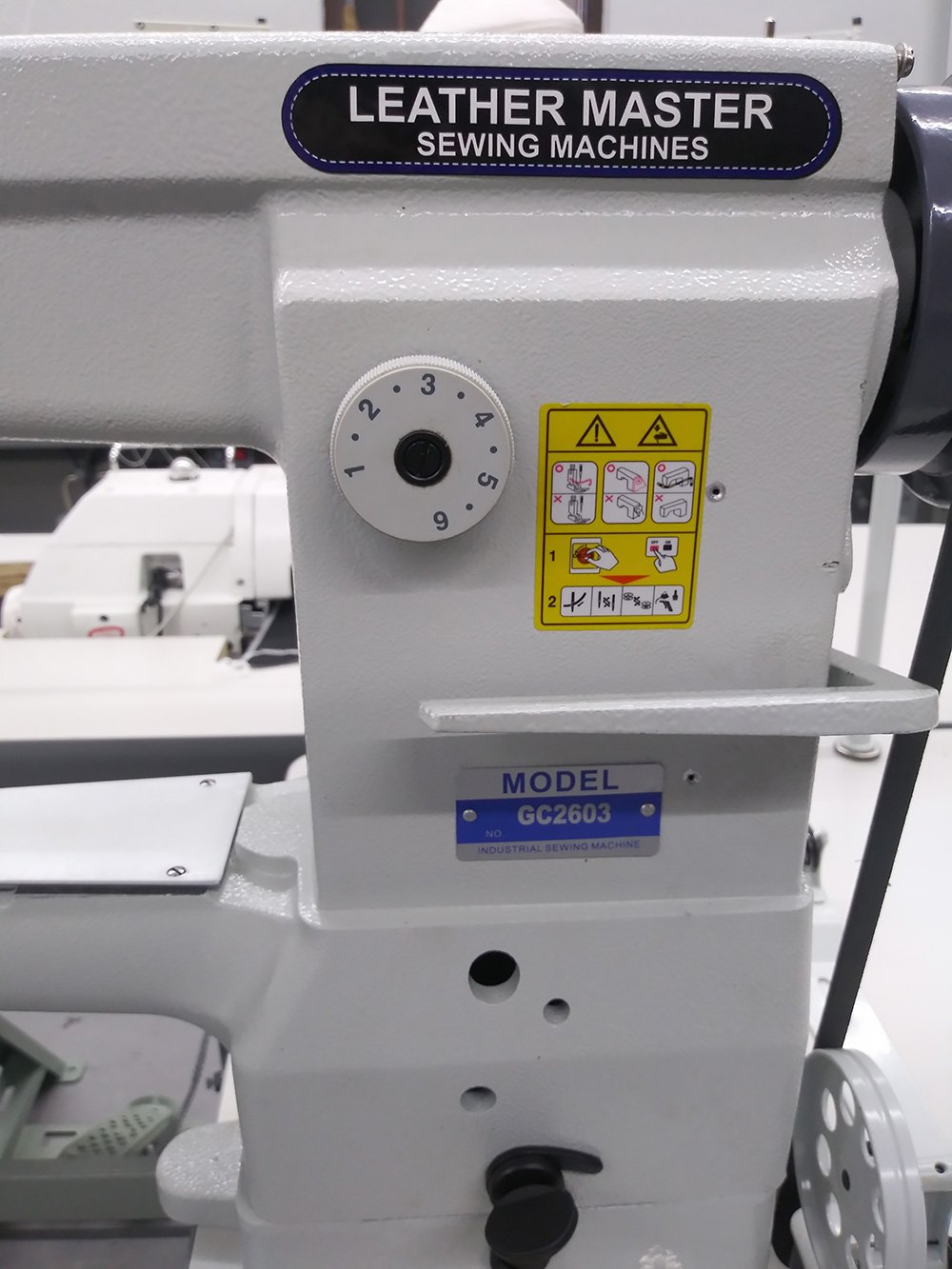

The LEATHER MASTER GC-2603 is of a robust construction for industrial heavy duty use and has a push down reverse lever and a rotary stitch length adjuster.
Technical Specs:
- Sewing Capacity: 3/8″ Thick
- Presser foot clearance: 13 mm (1/2 Inch)
- Max Stitch Length: 6 mm (1/4″)
- Needles: 135×17 size #16 to 23
- Thread Sizes: TEX 60 to 135

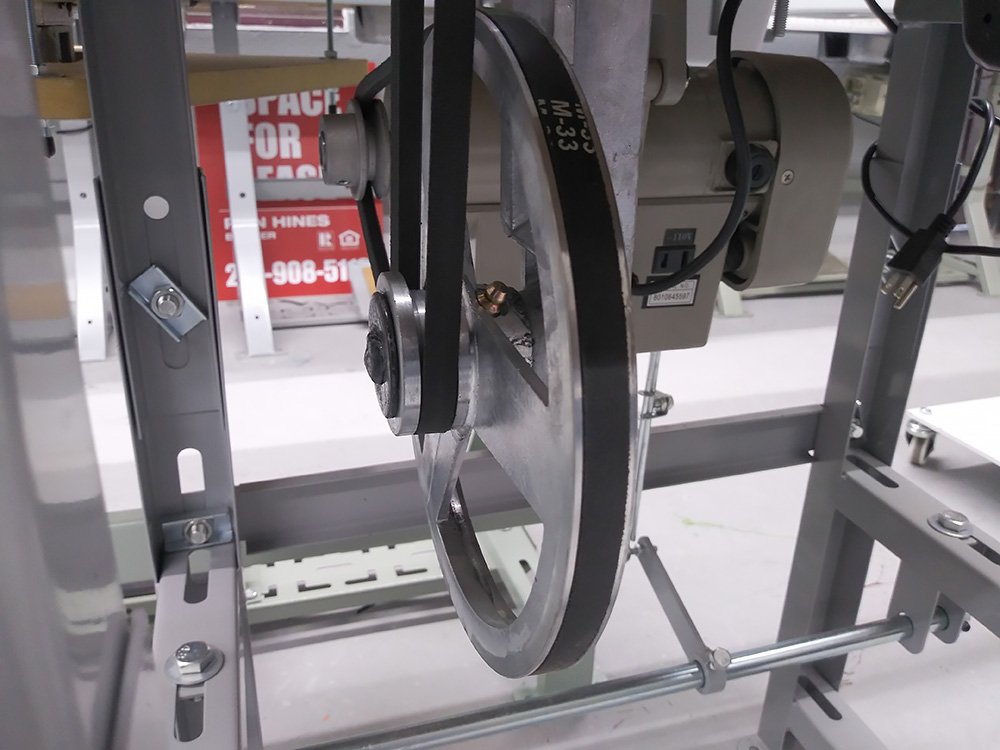

- Servo Motor: 550W, 3/5 HP, 110 Volt Standard Wall Plug
