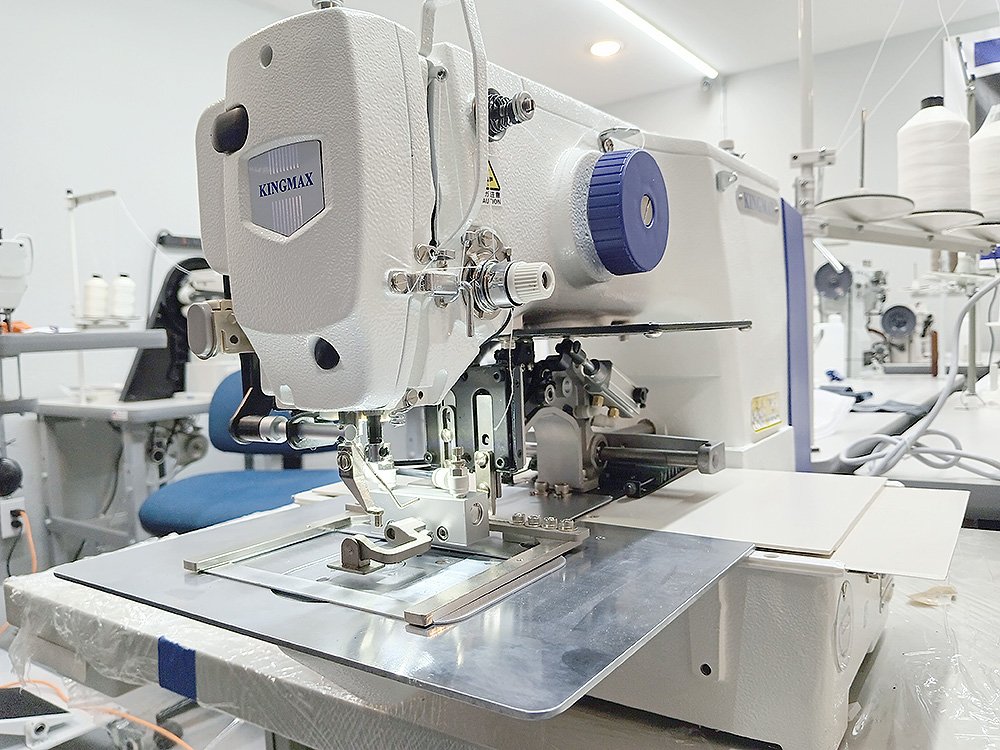

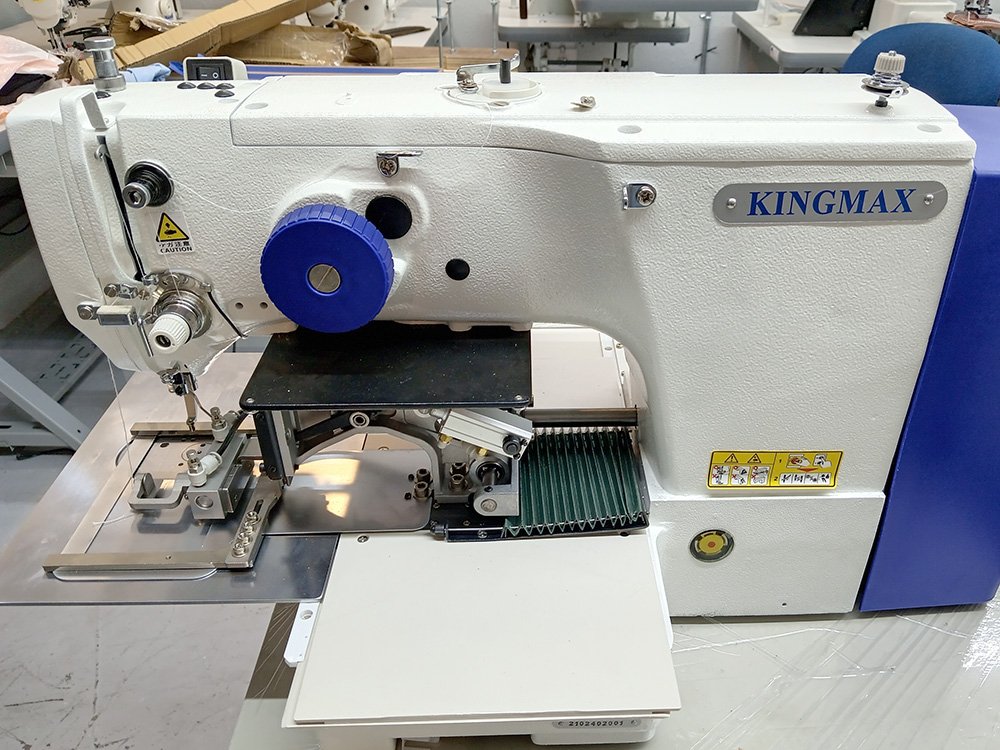

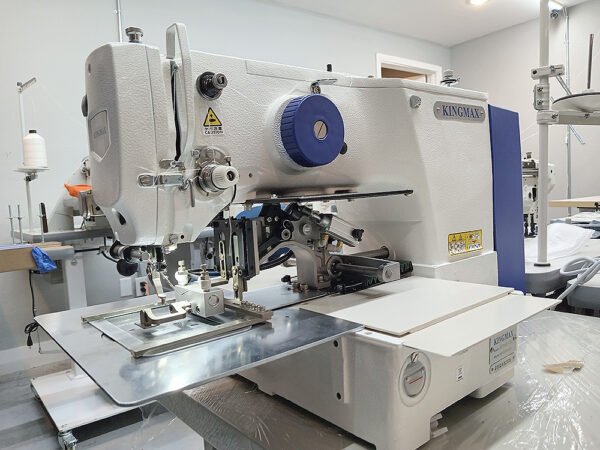

KINGMAX GT-210E-1306 Pattern Sewing Machine for Automatic Label Sewing
The KINGMAX GT-210E-1306 is an electronic CNC pattern sewing machine designed to sew any pattern with its 130mm x 60mm (5″ x 2.4″) sewing field.
This particular machine is factory supplied with a 360 device – also known as a flip-flop device – that allows you to sew labels to flat goods in different sizes. Also, the 360 device can be removed if not needed and the machine can be set up to sew many different patterns such as Box-X, W stitch patterns, Hook and Loop, etc. on webbing and other materials. Full patterns design capability is available via integrated LCD touch panel. The panel uses the renown DAHAO software system found on 90 percent of new pattern sewing machines that is easy to use with minimal programming experience.
This pattern machine is supplied with large shuttle hook and will comfortably sew and cut thread sizes 40, 60, 70, 90 and 135.
As with all pattern machines, custom clamping will be necessary to hold the material in place for the machine to successfully sew your exact application. Custom clamping is available at reasonable prices and I urge you to contact me with your exact specifications – whether it be label attaching or webbing applications.
KINGMAX GT-2120E-1306 Specifications:
- Max Sewing Field: 130mm x 60mm (5.1″ x 2.4″)
- Max Speed: 3,000 Stitches Per Minute
- Max Thread Size: TEX 135
- Needle System: 135×17 (DPx17) Sizes 14 to 23

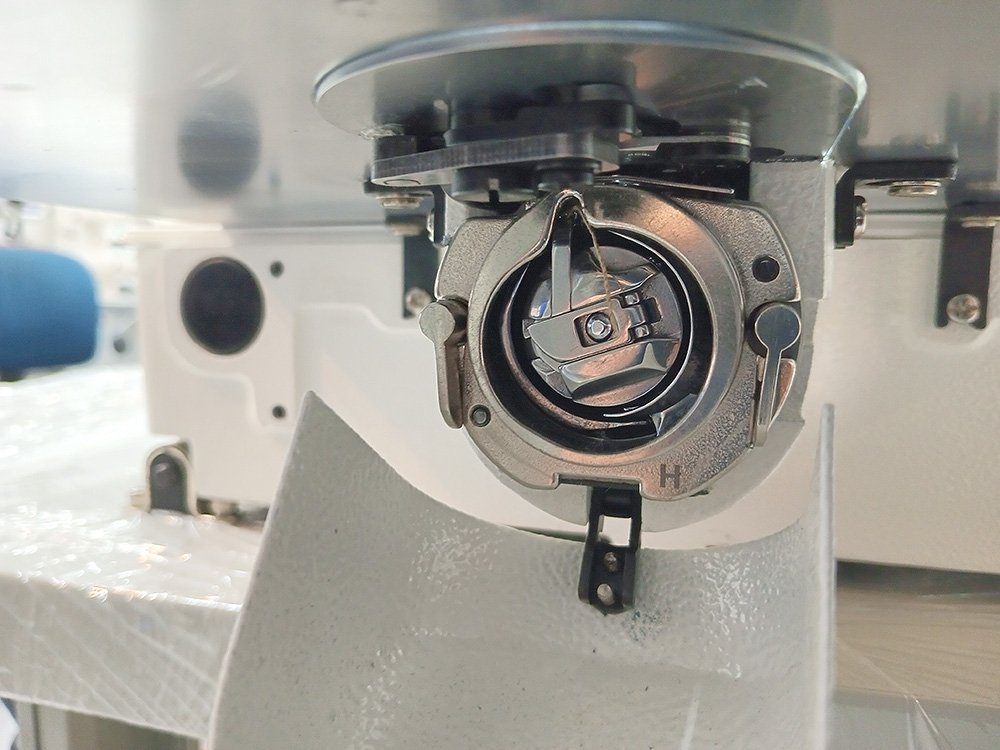

- Hook: Large Shuttle Hook and Bobbin
- Thread Trimming: Automatic Top and Bottom Thread Trimming
- Clamp System: AIR (Pneumatic) Clamp with Left and Right Independent Split (will need air compressor / line)
- Controls: Integrated Full Color LCD Touch Screen Programmer – DaHao System

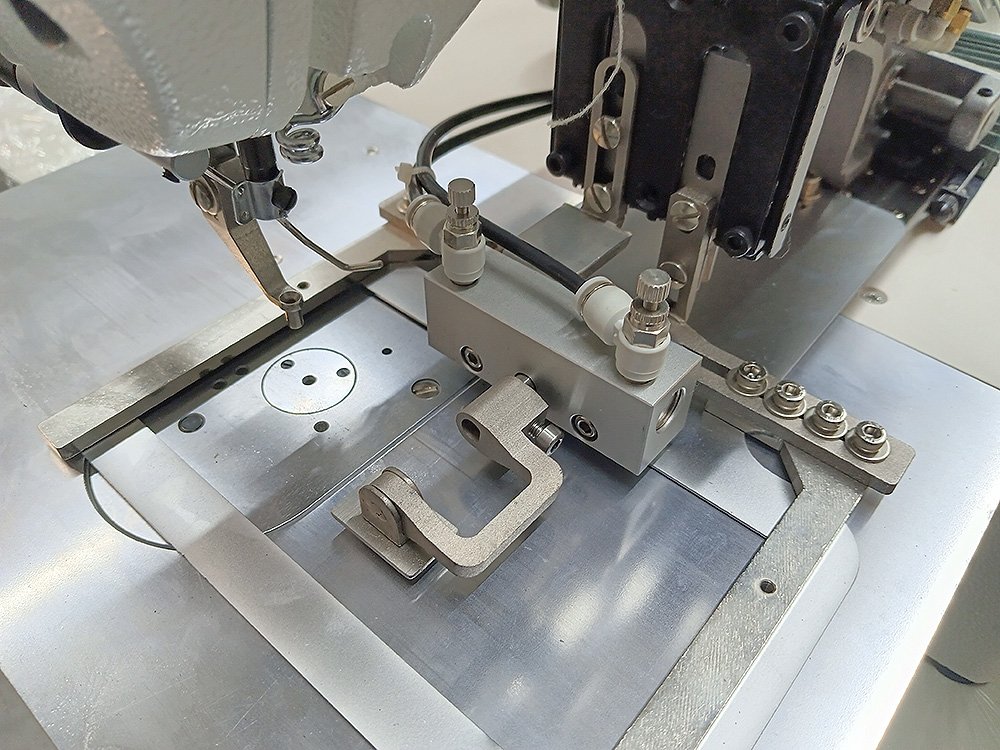

- Clamp Set-Up: Factory Supplied 360 Device for Sewing Labels (Removable)

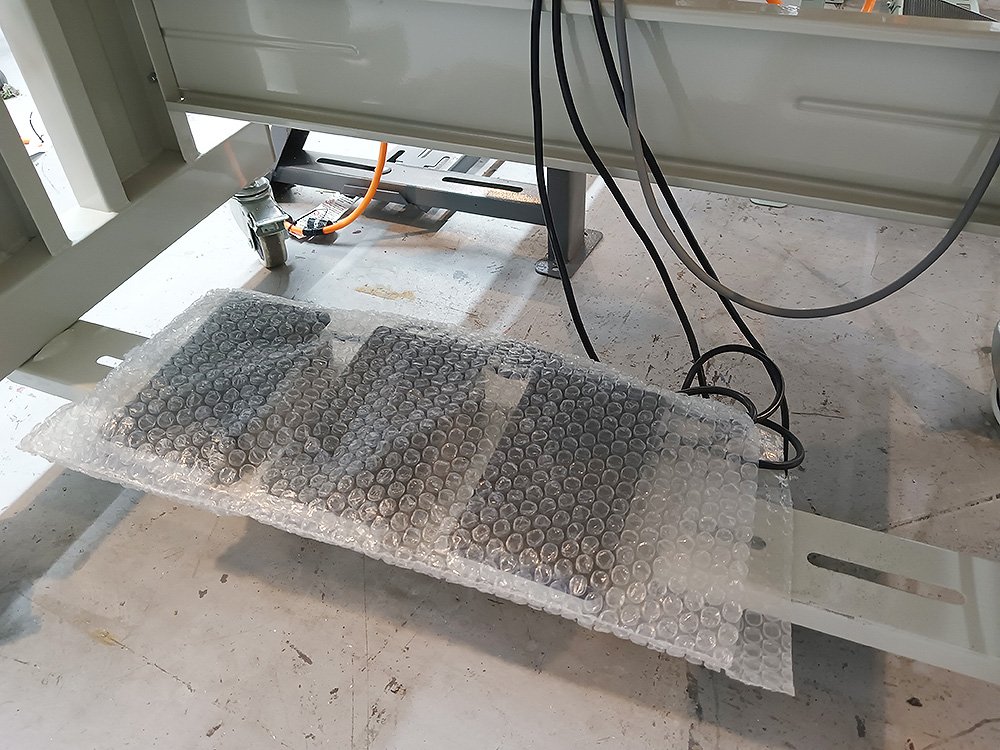

- Pedals: 3 Pedal Electronic Set-Up
- Oiling: Automatic Oiling and Lubrication
- Voltage: Factory Supplied 220 Volt Single Phase, 110 Volt Converter Supplied

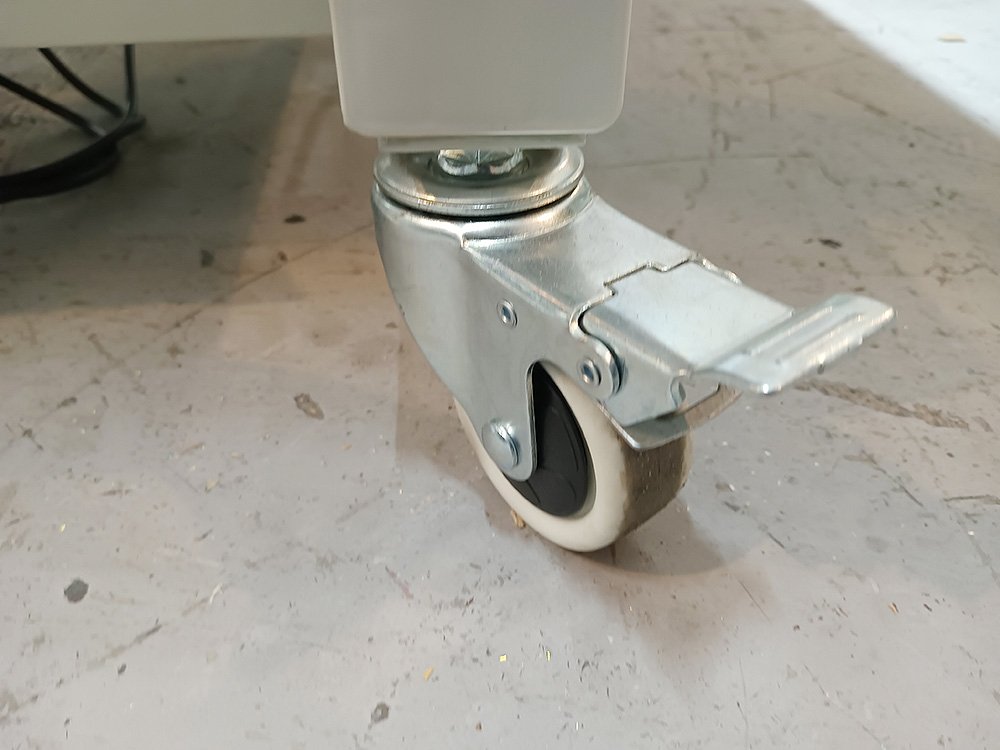

- Set-Up: Complete and Fully Assembled with Table top and Heavy Duty Caster Stand
- Custom Clamping: Anything can be fabricated to sew your application within its 130mm x 60mm sewing field. Contact me at 469-879-6213 with specs.
- Warranty: 1 Year Limited Warranty
…
