TONY H-305 Walking Foot Zig Zag Sewing Machine for Heavy Weight Materials, Complete and Fully Assembled
If you need to sew ZIG ZAG stitching on Neoprene (for Medical Braces and Coozies), on Leather, Vinyl, Canvas and other heavier weight materials, this is the optimal machine for those applications.
The TONY machines are made in Taiwan offering superior quality in metal components, stitch quality and longevity giving you years of use without issues.

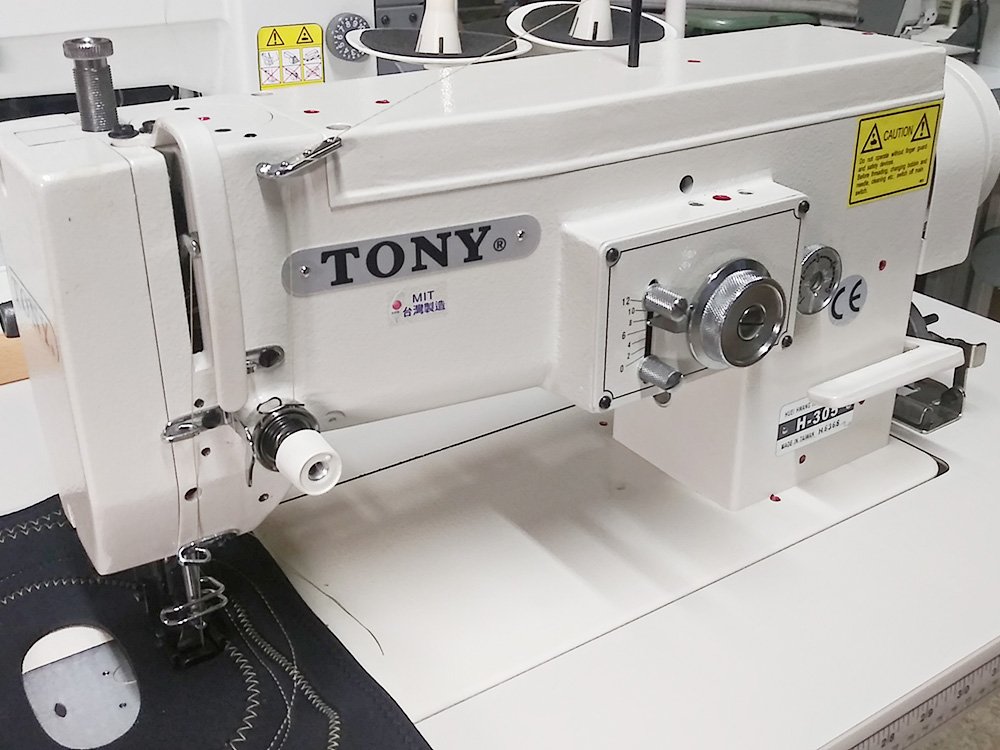

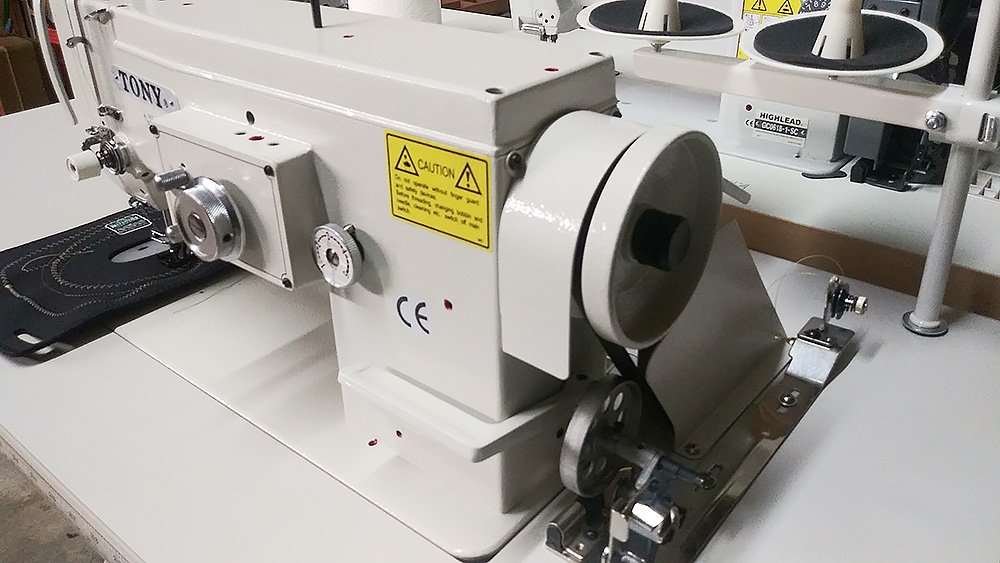

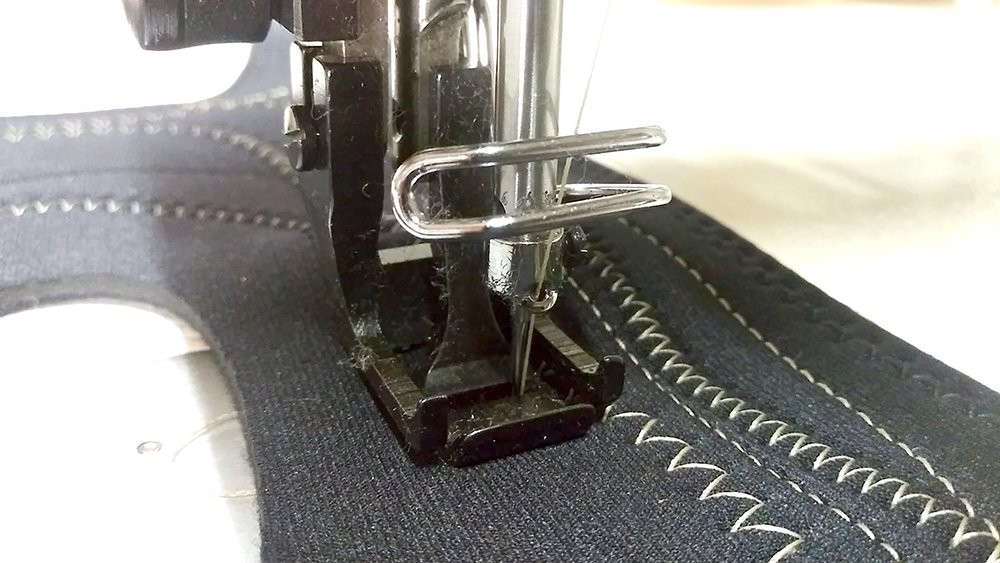

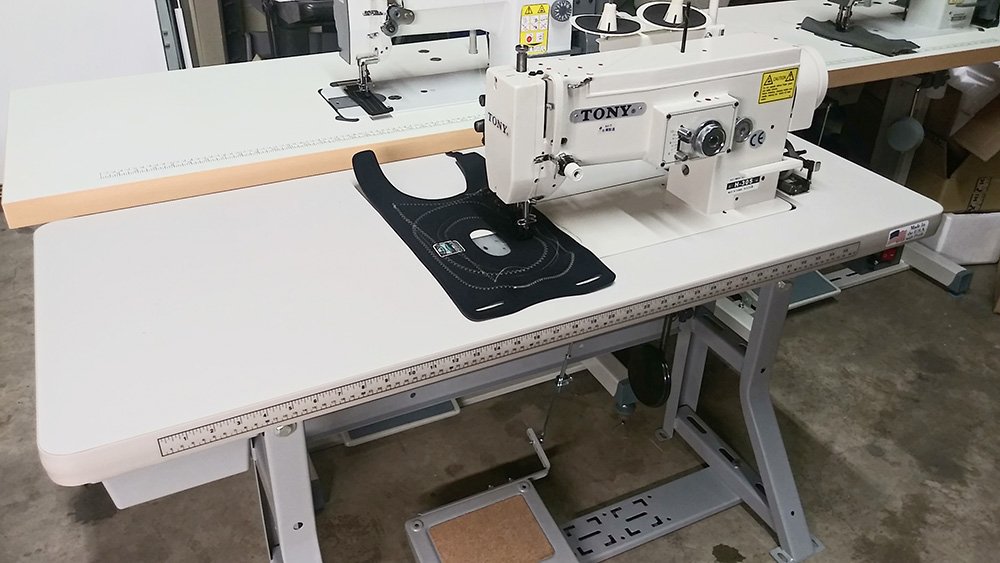

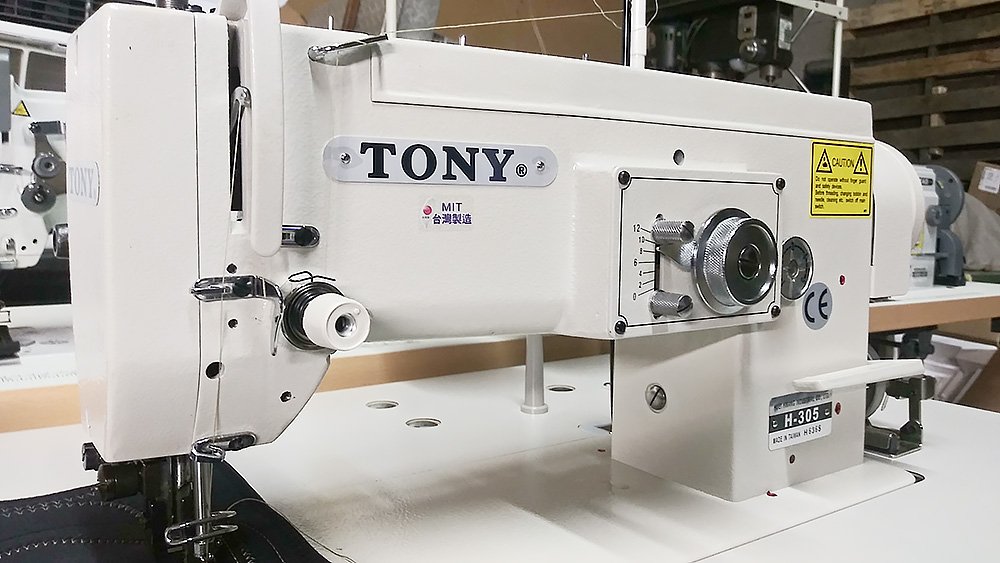

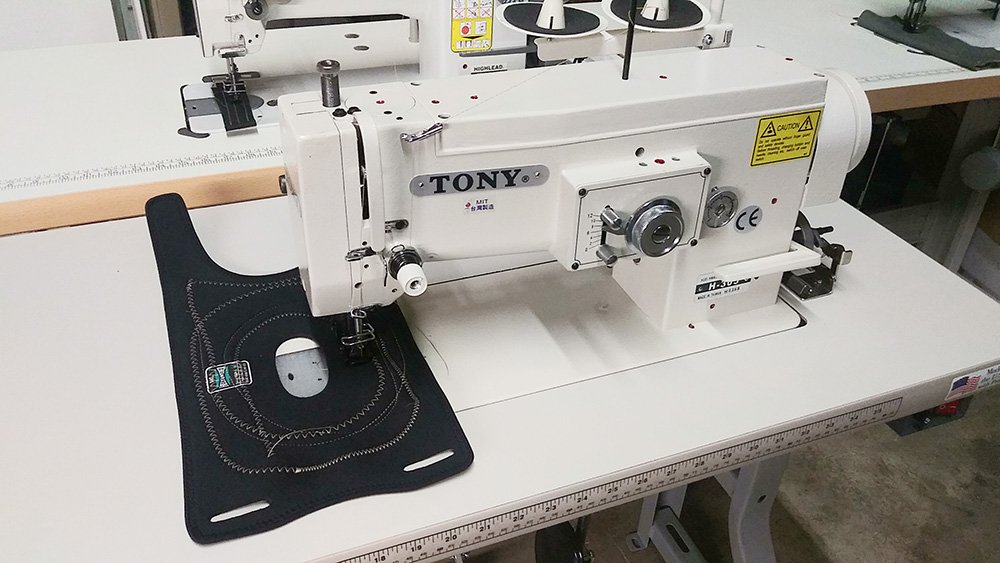

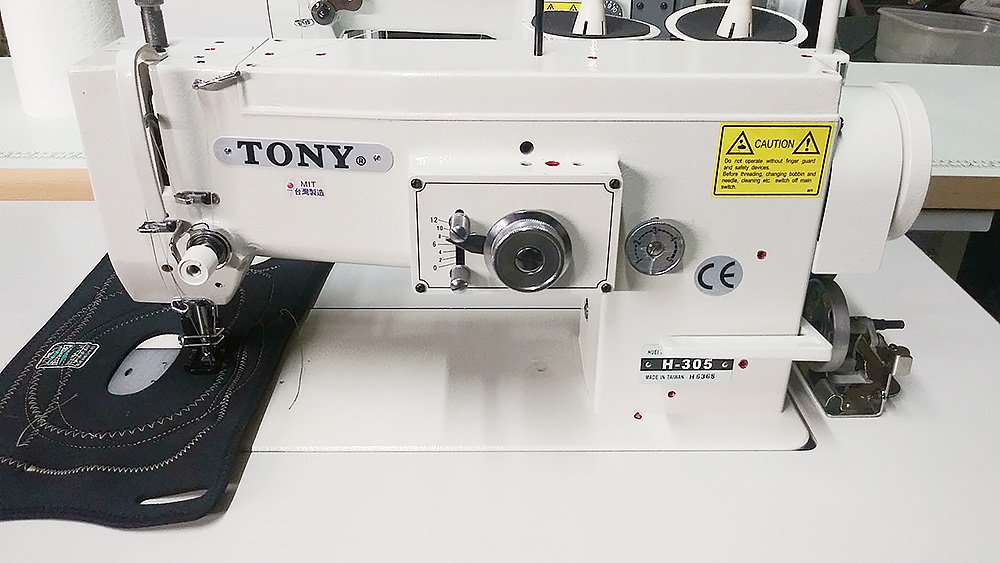

When you purchase from SewMax you will receive this machine complete and fully assembled – exactly as you see in the pics below.
Applications
For sewing medium to heavy weight fabrics which are difficult to feed when sewn.For such materials and products as wet suits, shoes, boots, leather, tarpaulins, neoprene.Federal Stitch 304Wet Suit version available for sewing neoprene rubber
Features
- Large bobbin and horizontal axis transverse rotary hook,
- Wide zig-zag
- Upper feed mechanism helps avoid slippage when sewing
- Reverse stitching
- Maximum stitches per minute – 2000*
- Can use up to V138 / size 20 thread
- Optional: H-305-3 model available allows changing between single step, 2 step and 3 step stitch types; additional parts required (not included).
Specifications
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 2000 |
| Clearence Under Presser Foot | 25/64″ (10mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Work Space | 10″ (255mm) |
| Needle | 135 x 17 |
| Bobbin | Metal |
| Bed Size | 7″ Deep, 18 7/8″ Long (178m x 480mm) |
| Needle Bar Stroke | 1-11/32″ (34mm) |
| Hook | Rotary |
| Zig-Zag Stitch Width | 3/8″ (9.5mm) |
Contact Dali at 469-879-6213 for more info or to place this machine on order over the phone.
