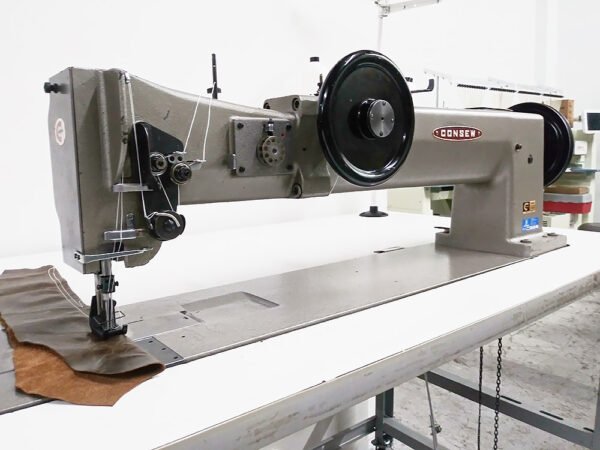

Japanese CONSEW 745R-30 Double Needle 30″ Long Arm Walking Foot Sewing Machine JUMBO Bobbins – USED Machine
| Model: | CONSEW 745R-30 |
| Type: | 30″ Long Arm Walking Foot Sewing Machine |
| Number of Needles: | 2 |
| Needle System & Size: | DYx3, Sizes 18 to 26 |
| Bobbin Size: | JUMBO Size (Part # 70141 ) |
| Thread Size: | TEX 70, 90, 135, 210, 270, 350 |
| Table & Stand: | Long Arm Sized Industrial Top and Stand |
| Motor Type: | SERVO Motor, 110 Volt |
| Shipping Method: | LTL Freight, Table/Stand/Motor Fully assembled, Head in the Box (will need to be mounted on table after arrival). The machine will arrive fully secured on a 70″ x 40″ pallet. |
| Shipping Cost: | Varies per location – Please calculate during checkout by entering your state, city, zip, etc.
Calculated shipping rates during checkout are for US Mainland customers only. Hawaii, Alaska, Puerto Rico and International customers are urged to contact us for custom shipping rates and arrangements. |
| Lead Time: | 5 to 10 Days |
This CONSEW 745R-30 is a used machine in perfect sewing condition. Some cosmetic wear can be visible on the machine and the table top but the machine performs like new. This is a Japanese made machine which are getting harder and harder to find. 90 days warranty is included.
The machine is set up with a 1/4″ needle gauge, but we can order and install a wider gauge if you need it – call, text or email me with your gauge requirements.
Set up on a 72″ x 34″ table top the machine will ship complete and fully assembled. If you prefer, we can take the machine out of the table and ship it beside on the pallet. This may help you in moving it easier after the delivery (let me know your preference).
Applications
- Suitable for sewing extra heavyweight materials such as canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabrics.
- Designed for stitching such products as tents, tarps, awnings, truck covers, auto, marine and furniture upholstery, sails, matting, carpets, polishing wheels, mops, luggage, construction barriers, field covers, divider curtains, fabric structures and heavy bulky products.
- Suitable for stitching double seams and lap seaming.
Features
- Compound feed, walking foot mechanism insures positive and even feeding of the material.
- Safety clutch protects the hooks from being damaged in case of accidental strain
- Reverse feed operated by foot pedal
- Centralized arm lubrication
- Reservoir-oiled hooks with micrometric control valve
- Presser foot locking lever
- Built-in bobbin winder
- Push button stitch regulator
- Extra heavy duty top shaft with four ball bearings for support
- Extra large bobbins and vertical axis hooks for use of heavy thread; also allows for long operation between bobbin changes
- High lift
- Front handwheel allows for easy positioning of the needles
- SERVO Motor
Contact Dali at 469-879-6213 if you need any additional info or to place this machine on order .
…
