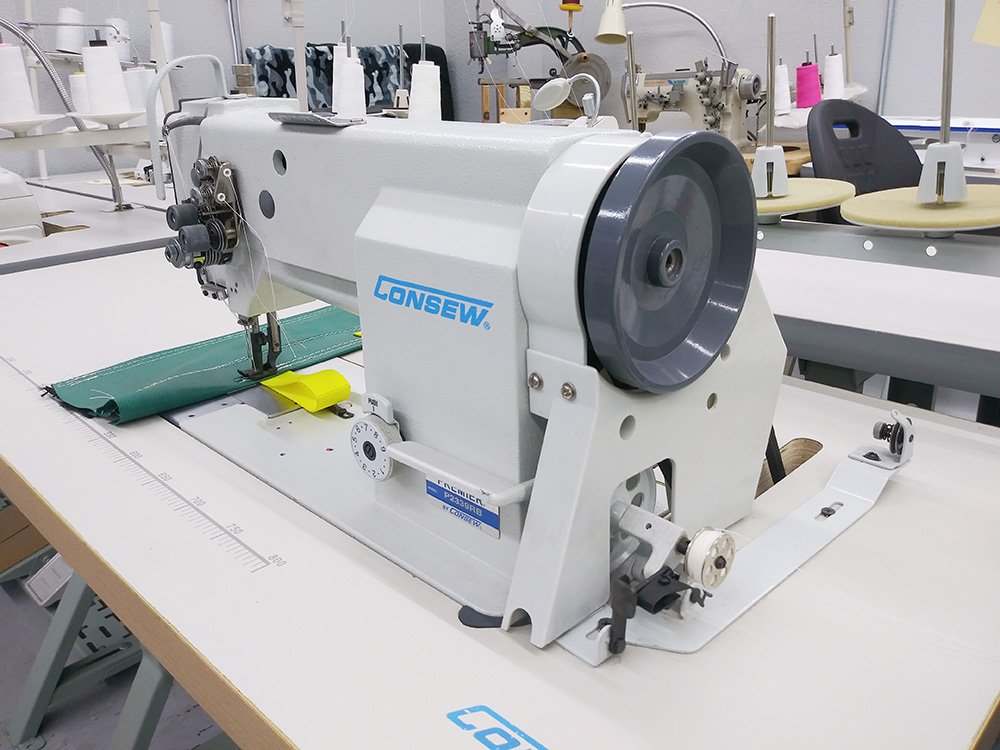

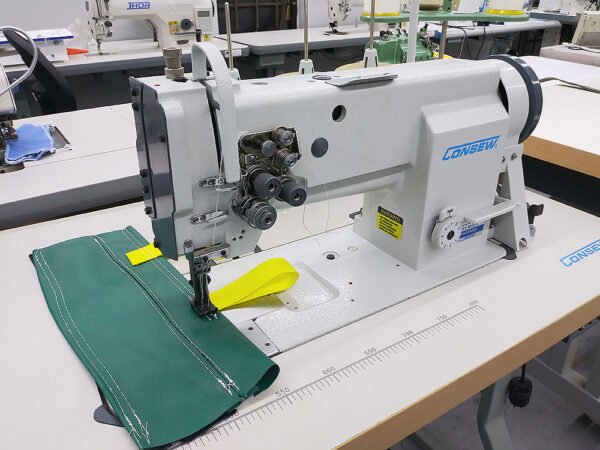

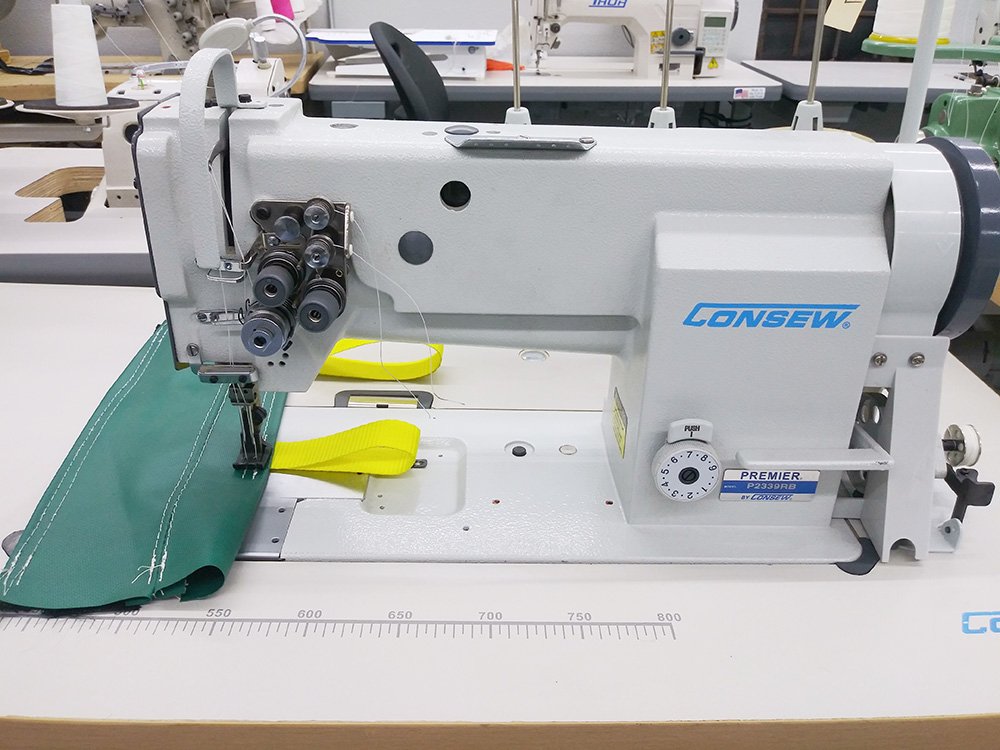

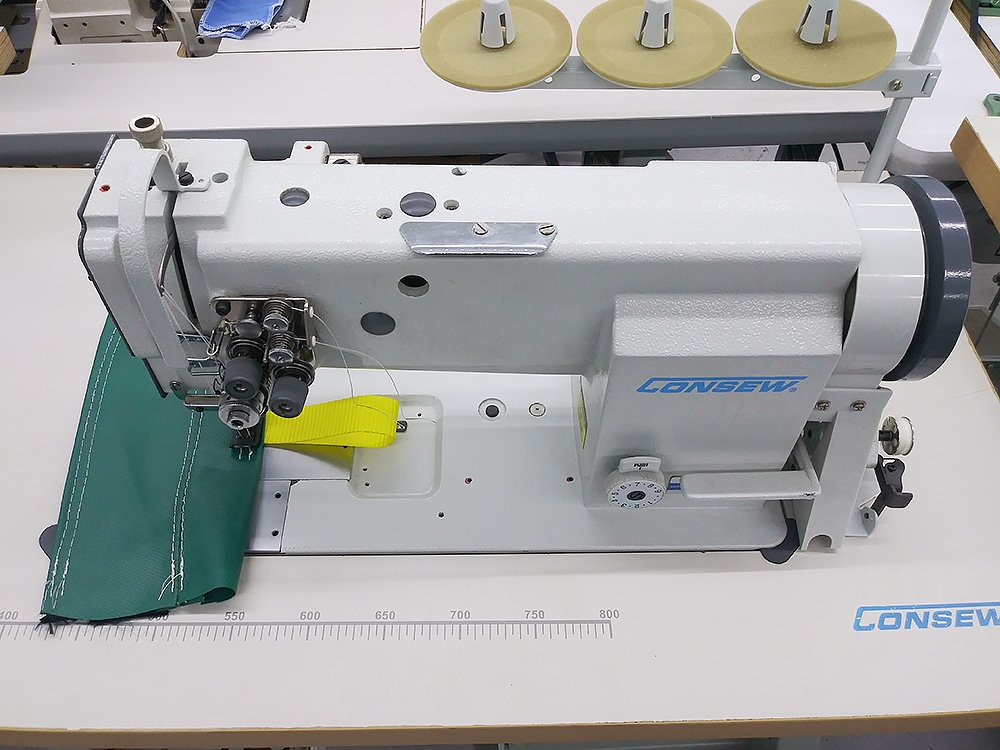

CONSEW P2339RB Double Needle Walking Foot Sewing Machine for Leather and Upholstery with 1/4″ Gauge
| Model: | CONSEW P2339RB – Premier Line |
| Type: | Double Needle Walking Foot Sewing Machine with 1/4″ Needle Gauge |
| Number of Needles: | 2 |
| Needle System & Size: | 135×17 (DPx17), Sizes 16 to 23 |
| Bobbin Size: | U Size |
| Thread Size: | TEX 60, 70, 90, 135 |
| Table & Stand: | 48″ x 22″ Industrial Top and Stand |
| Motor Type: | Servo Motor, 110 Volt |
| Shipping Method: | LTL Freight, Table/Stand/Motor Fully assembled, Head in the Box (will need to be mounted on table after arrival). The machine will arrive fully secured on a 48″ x 40″ pallet. |
| Shipping Cost: | Varies per location – Please calculate during checkout by entering your state, city, zip, etc.
Calculated shipping rates during checkout are for US Mainland customers only. Hawaii, Alaska, Puerto Rico and International customers are urged to contact us for custom shipping rates and arrangements. |
| Lead Time: | 5 to 10 Days |
FEATURES
• DOUBLE NEEDLE
• Large Vertical Axis Automatically Oiled Hooks
• Oil Pump System with Adjustable Oil Flow
• Upper Oil Glass Sight
• Barrel-type, Locking Stitch Regulator
• Reverse
• Large Top-Loaded Bobbins
• Safety Clutch
• Locking Slide Plate for easy bobbin access.
• Adjustable Take-Up Thread Guide for thread loop timing
• Quick Tension Release
SPECIFICATIONS
• Speed, Max. (S.P.M.): 2600 *Speed depends on thread, material and operation.
• Presser Foot Lift: By Hand- 5/16″ (8 mm) / By Knee- 33/64″ (13 mm)
• Needle Bar Stroke: 1-27/64″ (36 mm)
• Stitch Length, Max: 2.8 s.p.i. (9 mm)
• Work Space: 9-7/8” x 3-15/16″ (250 x 100 mm)
• Needles: 135 x 17 (x 2)
• Pre-wound Bobbin: U or S
Set up on a flat bed table top with a 110 Volt SERVO Motor and K-Leg package.
This is a brand new machine used as a showroom model.
Contact Dali at 469-879-6213 for more info or to place this machine on order.
